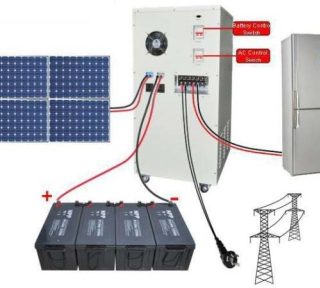

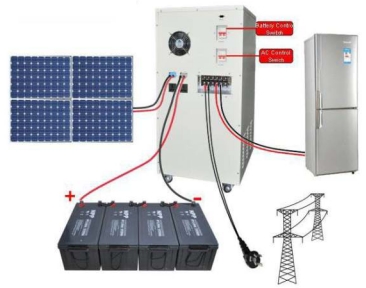

Jual Solar Power System Murah 5000 Watt Lengkap

Model No : GCXT-GP5000  DC48V-AC220V, 5000W

Fitur:

* continuous, standar,  gelombang sinus yang murni dan stabil dengan layar LCD
* Sistem ini dapat menyediakan listrik yang dihasilkan oleh energi matahari untuk beban langsung.
* Sistem secara otomatis dapat memilih energi atau utilitas tenaga surya untuk mengisi baterai menurut keadaan sinar matahari dan  tegangan baterai.
* Sistem akan bertindak sebagai UPS
* Sistem yang dibangun di stabilizer dengan fungsi AVR

All-around protection:
-DC over-voltage protection/over-voltage self-revcovery
-DC low-voltage protection/low-voltage self-revcovery
-Overheat/short-circuit/overload protection

Paket ini Terdiri Dari:

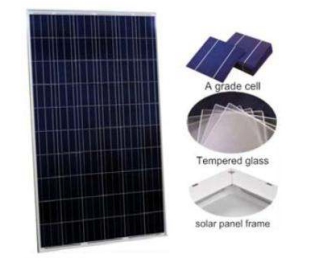

1.Solar Panel JB-200P = 24 Pcs

Spesifikasi:

-Power output (W): 200W

-Voltage at Pmax: 36.8V

-Current at Pmax:5.43A

-Open-Circuit Voltage (V):44V

-Short-Circuit Voltage:6.06A

-Maximum System Voltage (V):1000VDC

-Connect Array:2pcs in series, 12pcs in parallel

-Solar panel power range (advise):800W~4800W

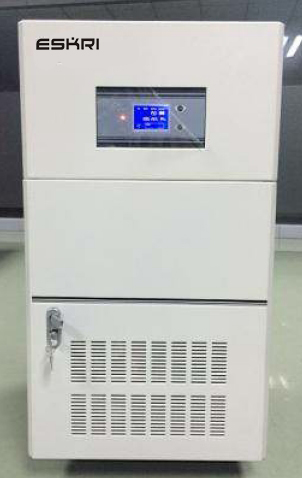

2.Hybird Solar Inverter With PWM Controller = 1 Pcs

Spesifikasi:

-Controller input range:DC60V-DC100V

-Recommended rated voltage of input:DC72V

-Charging current:60A

-Efficiency:96% （Max）

-Rated Output Power:5KW

-DC  Input Voltage:48VDC

-Rated Output Voltage:220V±10%

-Output Frequency:50Hz±0.5Hz

-Working Efficiency:>85%

-Output Wave:Pure Sine Wave(THD≤5%)

3.Battery= 4 Pcs

Spesifikasi Baterai:

-Battery Type:LiFePo4 Battery

-Capaticty: 48V/65AH (Max.:3120WH)

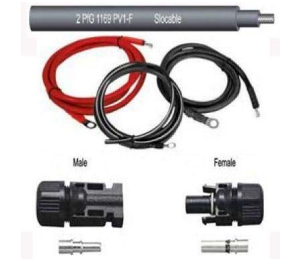

4.Accessories

Deskripsi:

-PV cable:10mm², 15meter ( one side wire with  Anderson connector, the other side with MC4 connectors) , 1sets

-PV cable:10mm², 3meter with MC4 connectors, 5 sets

-MC4 connectors, 2-1, 5sets

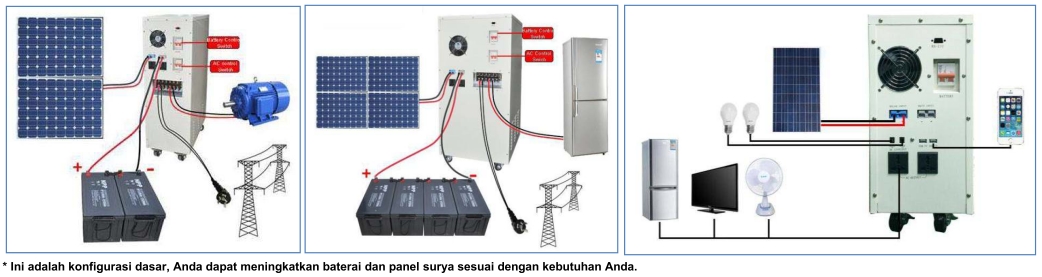

Contoh konfigurasi Dasar:
